In the food, pharmaceutical, and cosmetic manufacturing industries, the tank cleaning process requires precision and adherence to strict hygiene standards. The Stainless Steel CIP Ball is an automatic cleaning solution that optimizes this process. So what makes this device special? Let’s find out with Hoa Giang in the article below!
What are stainless steel CIP balls?

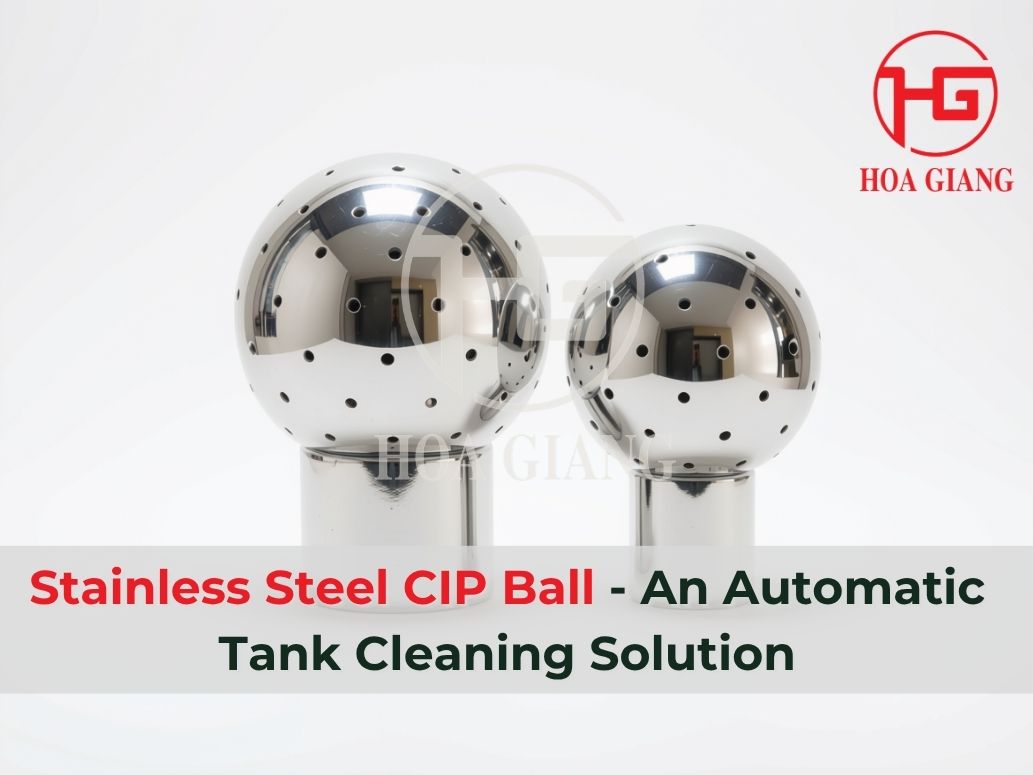

Stainless steel CIP ball is a specialized accessory installed inside industrial tanks and containers. The device functions as a pressure spray nozzle in a Clean-In-Place (CIP) system, automatically spraying and cleaning the entire interior surface of the tank without requiring any disassembly of the equipment.
- Materials of construction: Primarily manufactured from high-grade stainless steel such as 304, 316, or 316L. These materials possess superior chemical corrosion resistance, rust resistance, and do not react with the manufacturing solutions.
- Surface gloss: The surface roughness, both inside and out, meets standards. The ultra-smooth surface prevents plaque buildup and inhibits the accumulation of bacteria and microorganisms.
Operating principles and outstanding advantages
The device operates based on the pressure of the cleaning solution (purified water, specialized cleaning chemicals) pumped through the spherical body. The solution exits through precisely positioned nozzles, creating high-pressure water jets that cover the inner corners of the tank.
- Complete automation: There’s no need for workers to crawl inside the tank or disassemble complex connections.
- Optimizing operating costs: Significantly reduces water and cleaning chemicals, and shortens the cleaning cycle of the production line.
- Ensuring microbiological safety: Completely eliminate “dead legs,” remove stubborn plaque, and prevent cross-contamination between production batches.
Classification of common stainless steel CIP ball
Based on their operating mechanism and practical usage requirements in CIP systems, stainless steel CIP balls are currently classified into two main types, including: Fixed CIP ball and rotary cleaning ball, suitable for different tank sizes and cleaning requirements.
- Fixed CIP ball
- Characteristic: Durable, monolithic construction with no mechanical moving parts. The nozzles are evenly distributed across the spherical surface.
- Connection type: Welded connections, threaded connections, clamps, or locking pins.
- Application: Suitable for small to medium-sized tanks, for spraying and cleaning light liquid dirt.
Fixed CIP ball supplied by Hoa Giang
- Rotary cleaning ball
Stainless steel rotating CIP ball supplied by Hoa Giang.
- Characteristic: Equipped with a mechanical rotating shaft. Thanks to the force of the fluid flow, the nozzle rotates automatically.
- Connection type: Pins, threaded connections, or clamps.
- Advantage: The impact force of the water flow continuously and in multiple directions against the tank walls creates a mechanical scrubbing force that helps remove stubborn deposits across large tank surfaces.
Practical applications in industry
Thanks to its automatic cleaning capabilities and ability to meet stringent hygiene requirements, stainless steel CIP ball are widely used in many manufacturing fields, including:
- Food & Beverage Industry: Clean beer fermentation tanks, milk fermentation tanks, and tanks for storing soft drinks, syrups, and fruit juices.
- Pharmaceutical & Biological Industry: Clean the drug dispensing tanks, the purified water/RO storage system, and the microbial culture tanks.
- Cosmetics Industry: Spray cleaning of mixing tanks for lotions, body washes, shampoos, and other cosmetic solutions.
Tips for choosing the right stainless steel CIP ball
To select the appropriate stainless steel CIP ball and ensure optimal cleaning efficiency, businesses need to consider several important factors based on the characteristics of the tank and the operational requirements of the CIP system:
- Tank volume: Choose a stationary cleaning ball for small/medium-sized sinks; a rotating ball is preferred for large sinks to increase the cleaning radius.
- Environmental materials: Use 304 stainless steel for general food-grade applications. Choose 316L stainless steel if the tank contains strong cleaning chemicals, high acidity, or requires strict pharmaceutical standards.
- System pressure: Check the CIP system pump capacity to ensure sufficient pressure for the rotating ball to reach optimal rotation speed.
Effective CIP system management begins with selecting the right washing equipment. For in-depth technical advice and pricing, please contact us Stainless Steel CIP Ball, please contact Hoa Giang Stainless Steel directly for the best support.
FAQ about stainless steel CIP ball
What are stainless steel CIP balls used for?
Stainless steel cleaning balls are spray washing devices installed inside tanks, helping to distribute water or cleaning solution to all the inner surfaces of the tank. These devices are commonly used in CIP systems in the food, beverage, pharmaceutical, and cosmetic industries.
What types of stainless steel CIP balls are available?
The most common is a fixed CIP ball and rotary cleaning ball. The fixed ball is suitable for small to medium-sized sinks and general cleaning needs, while the rotating ball creates a 360° movement to enhance cleaning capabilities for larger sinks or those with more buildup.
Should you choose 304 stainless steel or 316L stainless steel?
Stainless steel 304 is suitable for many common food and beverage applications. However, it is suitable for environments with strong cleaning chemicals, high corrosiveness, or stringent hygiene requirements in the pharmaceutical industry inox 316L It is often the more suitable choice due to its good corrosion resistance.
How does the rotary cleaning ball work?
The cleaning solution is pumped through a device that creates a force acting on a rotating mechanism, causing the nozzle to move and distribute the water jet in multiple directions. This allows the cleaning solution to reach many areas on the walls, bottom, and inside the toilet bowl.
Can stainless steel biological filter balls be installed in all types of tanks?
No. The choice should be based on Tank capacity and dimensions, pump pressure, spray radius, type of substance to be cleaned, and hygiene standards of the system.Choosing the right equipment helps improve CIP efficiency and avoid wasting water and chemicals.
Do stainless steel CIP balls require maintenance?
Yes. With a stationary sphere, the spray nozzles need to be checked periodically to prevent clogging. With a rotating sphere, the shaft and moving parts also need to be checked to ensure the device operates stably, at the correct speed, and within the correct spray range.
Hoa Giang – Vietnam’s leading supplier of sanitary stainless steel.
With a foundation of experience and in-depth expertise in the field stainless steel for sanitary use Hoa Giang has been and continues to be a partner providing comprehensive solutions for the demanding production systems of the food, beverage, pharmaceutical, and cosmetic industries.
Hoa Giang provides leading and reputable sanitary stainless steel solutions in Vietnam.
Hoa Giang is the exclusive distributor of GHWA Thailand in Vietnam., providing stainless steel products with clear origins, meeting quality and technical standards requirements for production systems.
In addition to products, Hoa Giang provides consulting services for equipment selection. Tank dimensions, CIP system pressure, stainless steel material, and application requirements. This helps businesses optimize cleaning efficiency and production line operations.
Contact Hoa Giang for solution consultation Stainless Steel CIP Ball Suitable for the system and actual usage needs.
